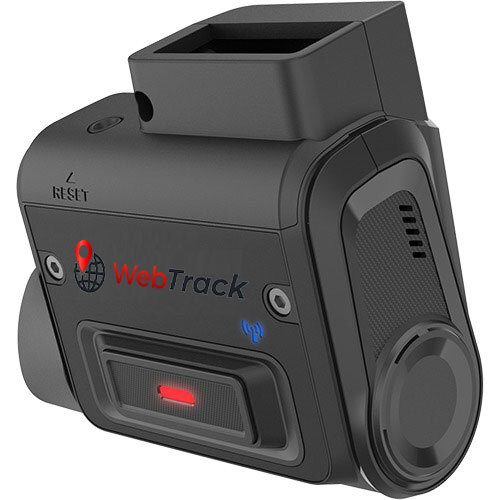

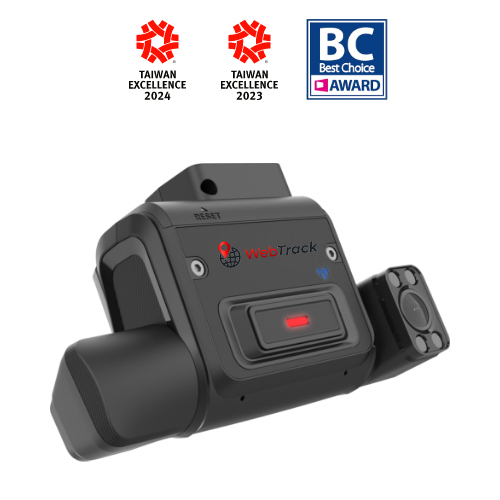

WebEye K145C/245C

Always connected via the built-in 4G LTE modem
Multiple Certifications – Verizon, AT&T, FirstNET, T-Mobile, Telstra, AWS, Rogers, Telus
Data redundancy – video clips are stored in parallel on SD card and Cloud
Flexible platform – open APIs & SDK for seamless integration
Secure design – tamper-proof and vehicle battery low voltage protection

Request More Information

Specifications

+

Platform

Qualcomm® Snapdragon™ SDM450 Octa core, 1.8GHz

OS

Android™ 9.0 or Android™ 10

Memory

2GB RAM / 16GB internal storage

Expansion

MicroSD slot (up to 512GB support)

Wireless Interface

IEEE 802.11 a/ b/ g/ n/ ac (2.4 GHz & 5 GHz)
Bluetooth® 4.2 BLE
GPS, QZSS, GLONASS, Galileo
LTE Cat. 6 (3G/ 2G fallback*)
EMEA & Australia
LTE FDD Band: 1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28;
LTE TDD Band: 38/ 39/ 40/ 41;
WCDMA Band: 1/ 2/ 4/ 5/ 8;
GSM: 850/ 900/ 1800/ 1900 MHz
North America
LTE FDD Band: 2/ 4/ 5/ 7/ 12/ 13/ 14/ 17/ 25/ 26/ 66/ 71;
LTE TDD Band: 41;
WCDMA Band: 2/ 4/ 5;

NFC

NFC: MiFare®, FeliCa | RFID (HF): ISO14443A&B, ISO15693

Camera

Forward: FOV: D: 142° / H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable)	Forward: FOV: D: 142° / H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable) Inward (IR): FOV: D: 142° / H: 116°/ V: 60° (±5%) Full HD 1920 x 1080 @ 30fps (configurable)

Physical Interface

MicroSD slot (up to 1TB capacity)
Mini USB x1 (supports 3rd cam, USB type)
Built-in mic x2
Built-in speaker x1

Buttons

Emergency recording button for driver to manually trigger 60s recording

Environment

-20° to +60°C (-4° to +140°F) operating temperature
-30° to +85°C (-22° to +185°F) storage temperature

Certification*

CE, CB, FCC/IC, RCM, BQB, PTCRB, AT&T, Verizon,T-Mobile, FirstNet, WEEE, ROHS, AWS (Amazon Web Services), Telstra, Rogers, Telus

Dimensions
