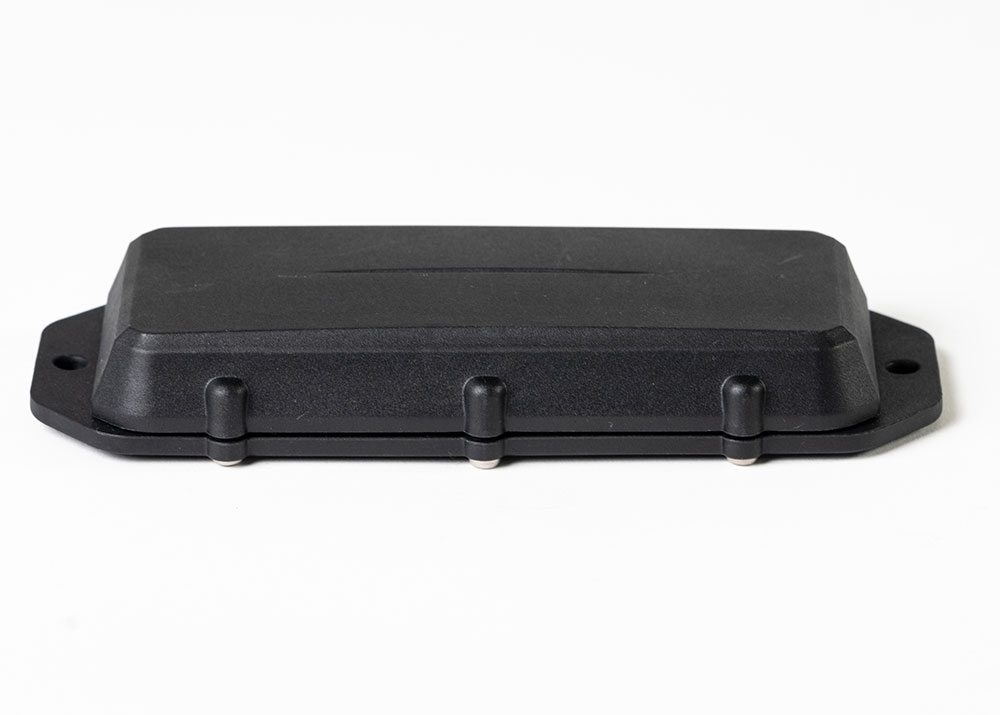

Manta Fusion GPS BLE
High-performance, high-precision Indoor/Outdoor GPS asset tracking device and Bluetooth® Gateway. Features cloud-based location solving for 10+ years of battery life.
- True GPS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management
- Bluetooth® 5.2 Gateway for tagged asset management and sensor monitoring
- Deploy-once battery life with up to 10+ years on only 3 x AA user-replaceable batteries

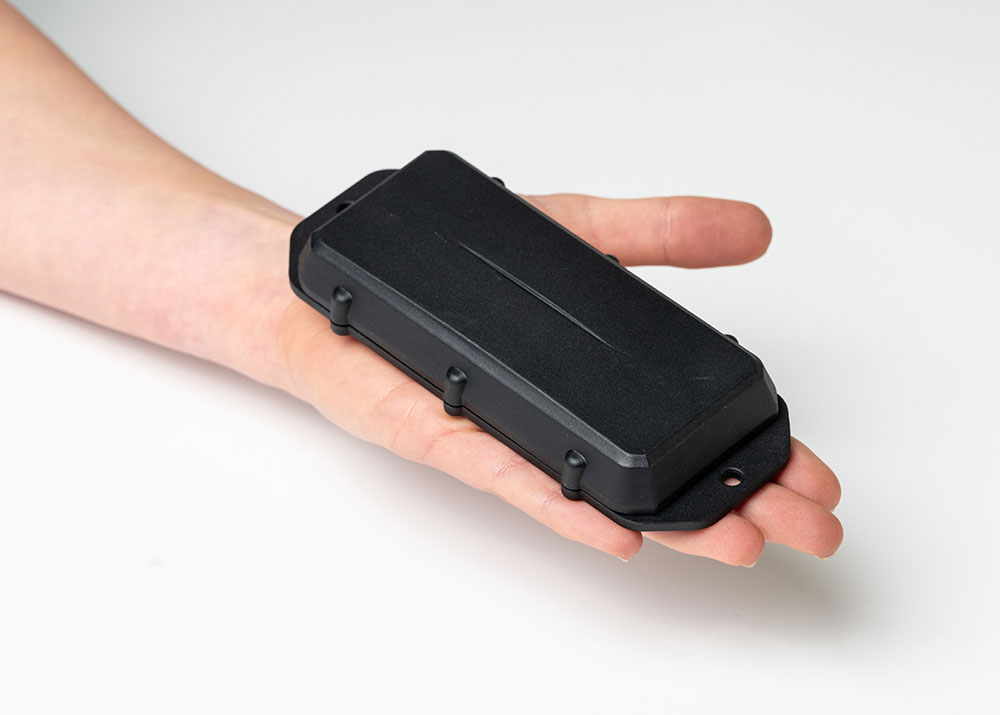

- Slim form factor and ultra-rugged IP68, IK07 housing
- Intelligent power management with cloud-based location solving and low battery alerts
- Magnetic switch for device activation and tamper detection
- LTE-M / NB-IoT Connectivity
Connectivity
| Cellular | Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
| LTE-M (Cat-M1)/NB-IoT | Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66 |
| Bluetooth® | Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring. |
| SIM Size and Access | Internal Nano 4FF SIM |
Location
| GNSS Module | Sony CXD5612 |
| Constellations | Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS |
| GNSS Assistance | GNSS almanac data for greater sensitivity and position accuracy |
| Low Noise Amplifier | GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail. |
| Cell Tower Location | Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal. |
| Location Accuracy* | GNSS: ~1m CEP Cell Tower Fallback: ~250m-1km. Dependent on number of nearby towers. |
| Secondary Module | Semtech LR1110 |
| Wi-Fi Positioning | Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi). |
| Cloud-Based Solver | Asset location is calculated in Digital Matter’s Location Engine. |
| Location Accuracy* | Wi-Fi Scanning: ~10m-100m with Wi-Fi in urban areas. |
| * Positioning accuracy specifications are provided by the GNSS module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy. |
Power

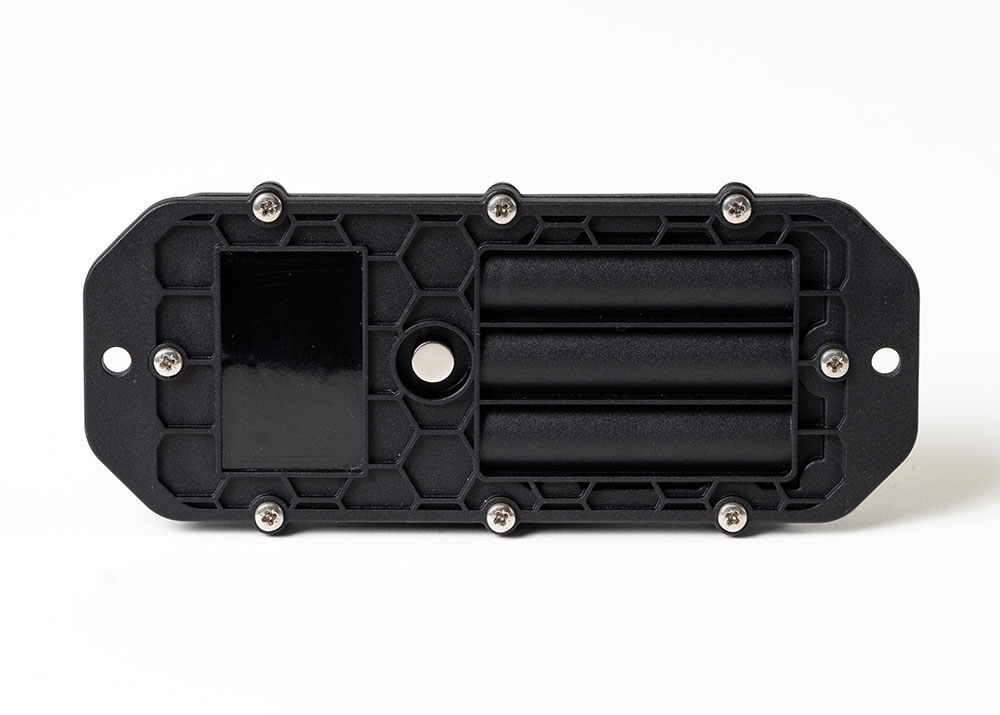

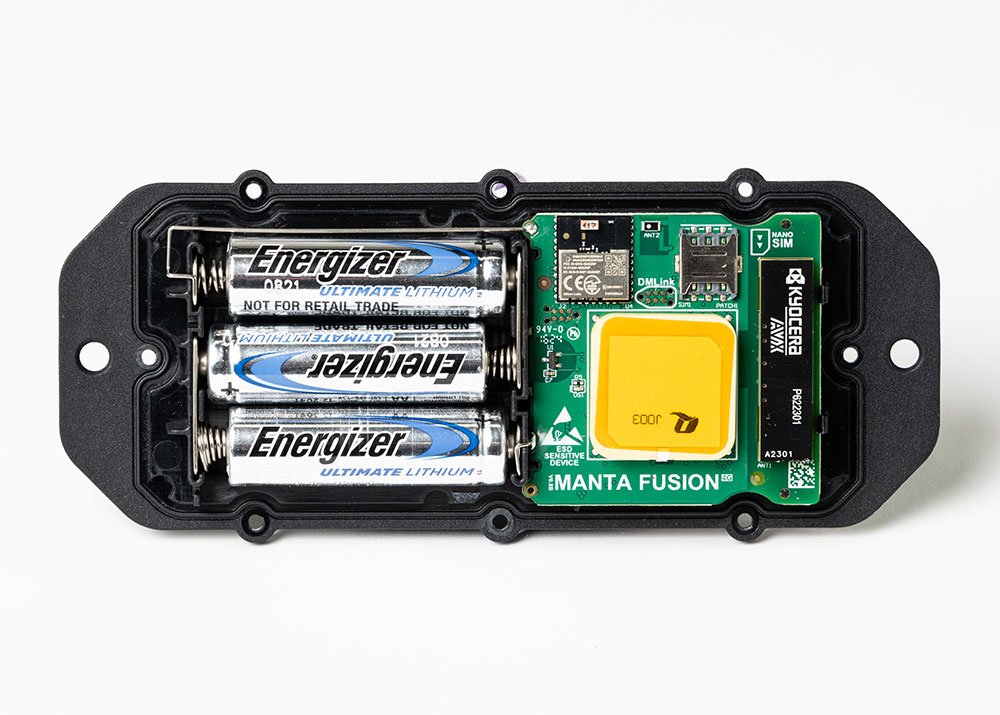

| User-Replaceable Batteries | 3 x AA. Batteries not included. Widely available at most hardware or retail locations. |
| Supported Battery Types | Lithium or Lithium Thionyl Chloride (LTC) Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner. |
| *Battery Life Estimates | “Once Daily location updates – 10+ years Movement-Based location updates** – 5+ years Hourly location updates – 4+ years” |
| Sleep Current | <10uA Average current in lowest power state. |
| “* Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com. ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.” |
Mechanics/Design

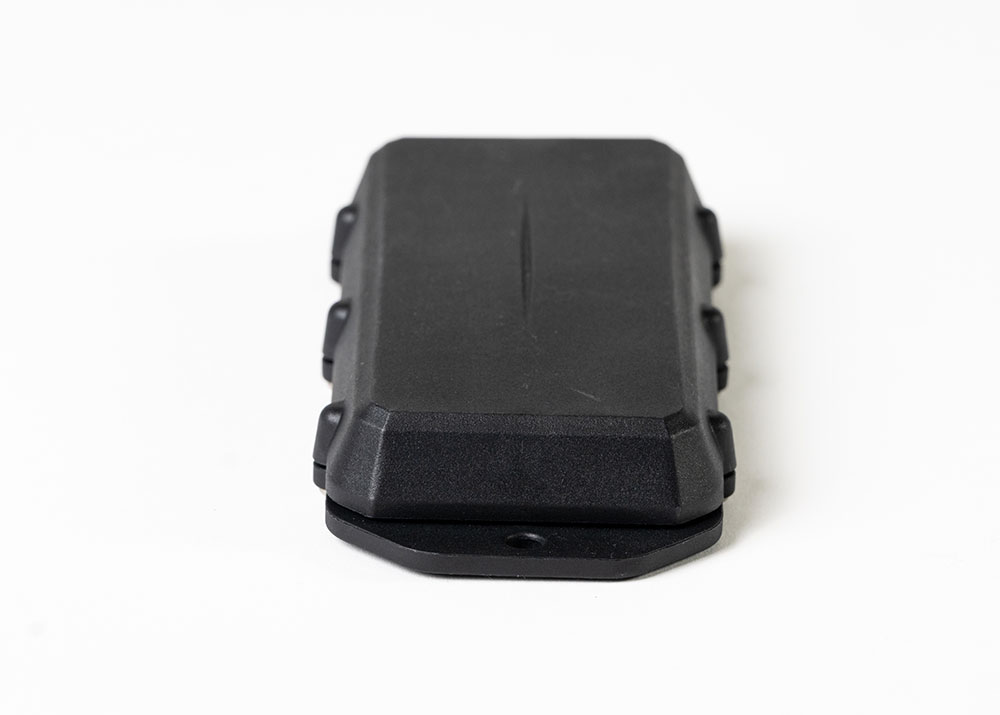

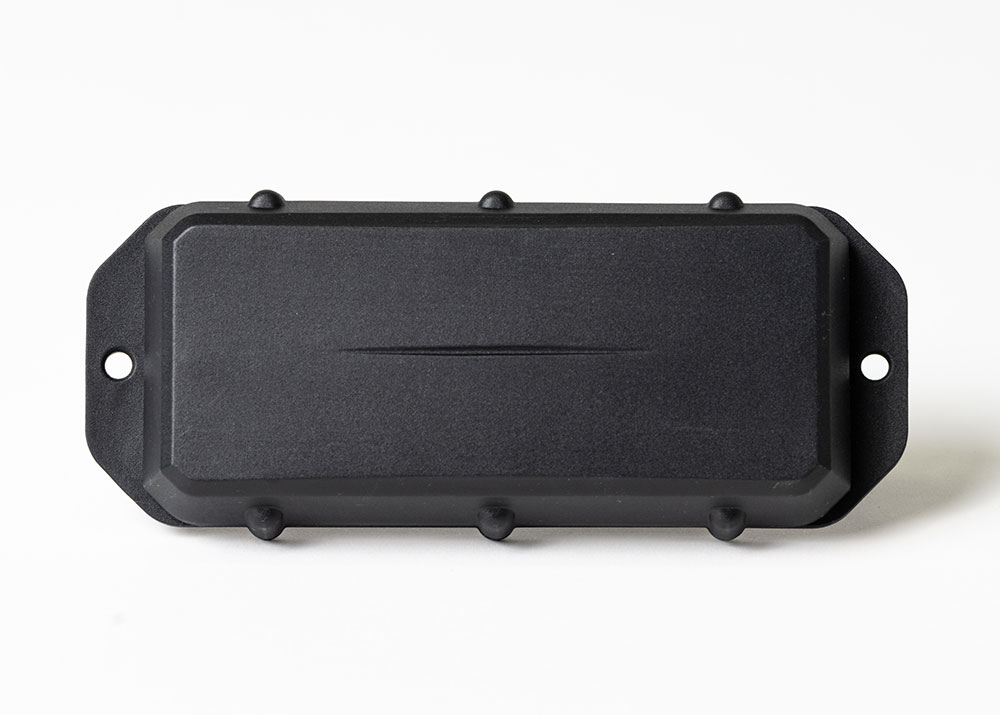

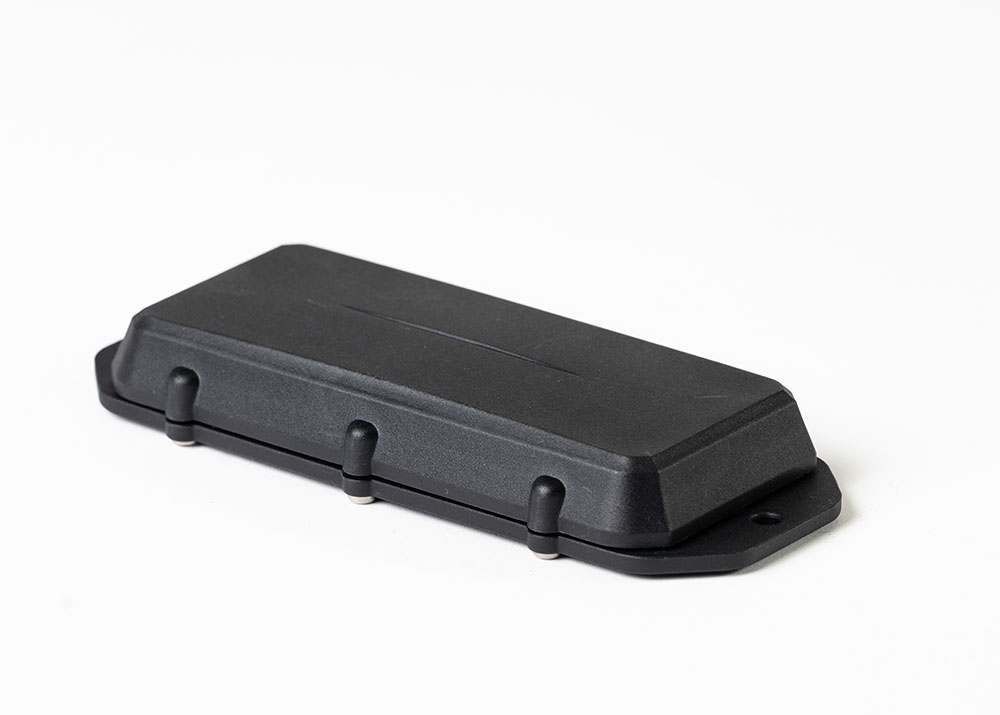

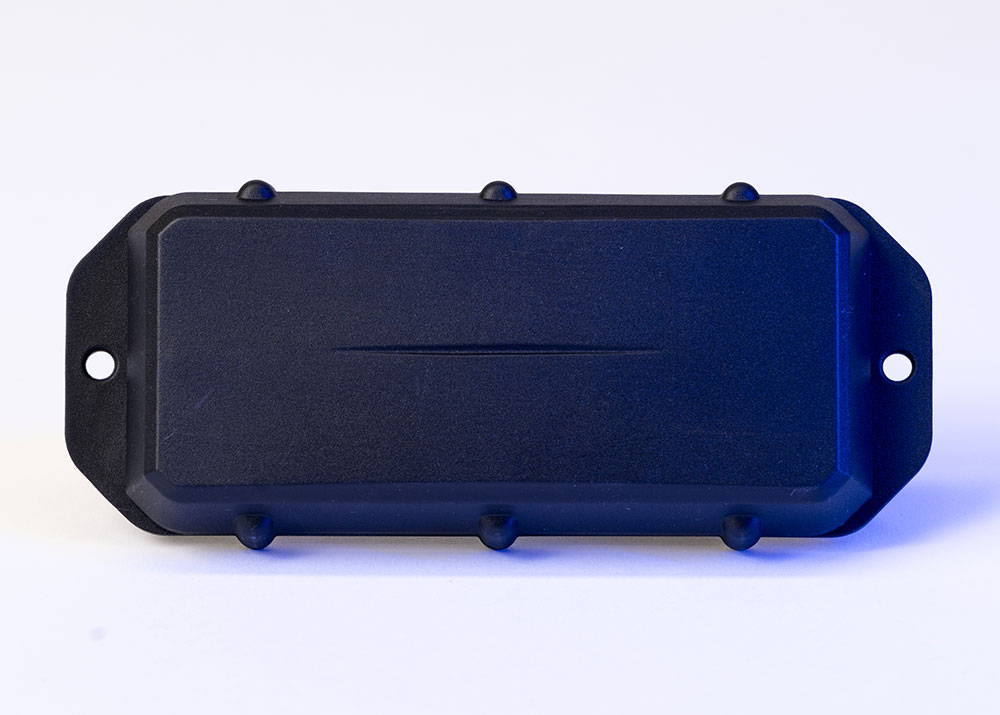

| Dimensions | 154 x 66 x 21 mm (6.1 x 2.6 x 0.83 in) |
| Device Weight | 170 g with Energizer Ultimate Lithium Batteries |
| Housing | Non-branded nylon glass housing is suitable for white labeling. |
| IP/IK Rating | Ultra-rugged and waterproof housing ensures the device can withstand impact, fine dust, and brief submersion. |

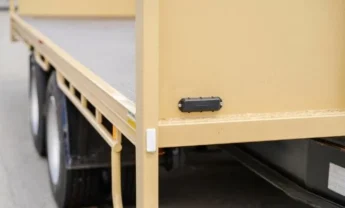

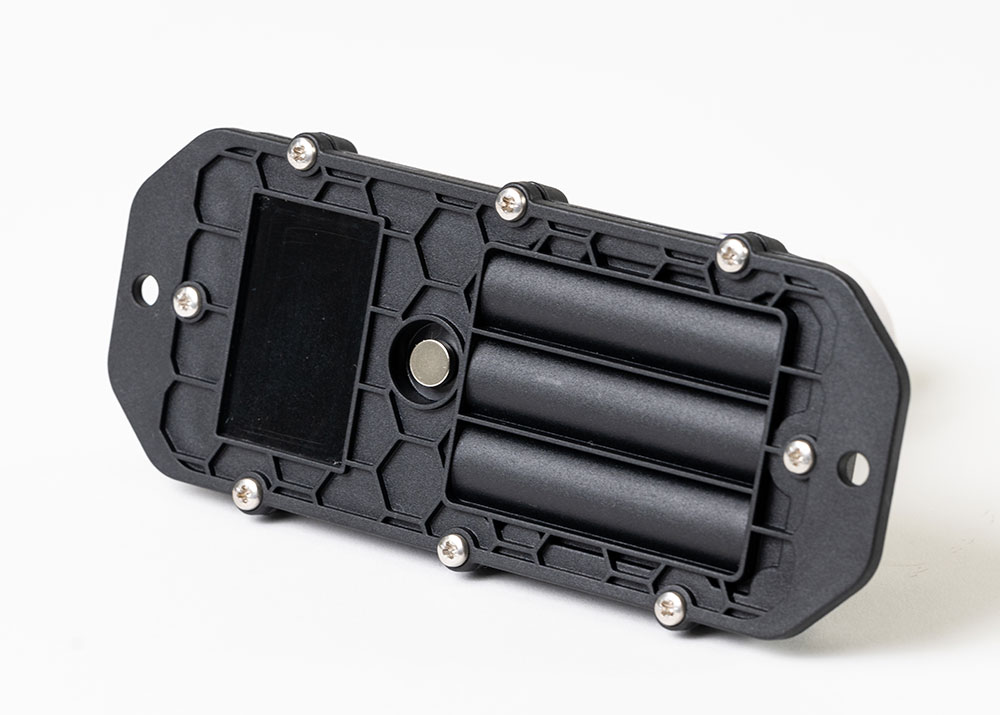

| Installation | Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided. |
| External Magnet | Removal of magnet enables quick activation and tamper detection. |
| Temperature Range | Operating: -30°C to +60°C Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place |
| Cellular Antenna | Internal |
| GPS Antenna | Internal |
| Wi-Fi Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement, high G-force events, and more. |
| Diagnostic LED | Diagnostic LED indicates operation status. |
| Flash Memory | Store weeks of records if device is out of cellular coverage. View storage capacity here. |
| Onboard Speed and Heading | Current speed and heading is reported with each position update. |
| Onboard Temperature | Provides ambient temperature but may not be suitable for precise temperature logging purposes. |
Smarts
| Adaptive Tracking | Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary. |
| Battery Life Monitoring | ‘Battery Low’ and ‘Battery Critical’ alert levels. |
| Geofencing | The server can use device location to create geofences and alerts if an asset enters or leaves designated locations. Geofences can also be downloaded directly to the device for enhanced location-based actions and alerts. View storage capacity here. |
| Impact Detection | Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold. |
| Magnetic Activation | Removal of the magnet can be used to activate the unit, enabling the preprovisioning of SIM cards and batteries. |
| Rotation Counting | Keeps a count of the number of rotations of the device. |
| Run Hour Monitoring | Capture run hours based on movement to understand and optimize asset utilization. |
| Sleep Mode | Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage. |
| Tamper Detection | External magnet provides an alert if the device is removed from your asset. |
| Theft Recovery | Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval. |
| Tip Detection | Define a range of angles that constitutes a ‘tipped’ state and configure alerts |
Device Management
| Flexible Configuration | Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application. |
| Device Management Platform | Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system. |
| Configuration App | Configurable with DM-Link provisioning tool. |
Integration
| Third-Party Integration | TCP Direct or HTTPS Webhook. |
| API | Command and configure the device via rich API functionality |
Security
| Data Security | Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security |
Warranty
| Manufacturer’s Warranty | Two-year manufacturer’s warranty. Exclusions apply. |
Certifications
| Regulatory | Please check our knowledge base for regulatory and network certifications . |
